3m XL Flat Pack Kiosk & Store Grey RAL7035

The 3m XL Flat Pack Kiosk & Side Linked Store in Grey (RAL 7035) is a versatile, modular solution designed for use as a retail kiosk, information desk, ticket booth, or ancillary storage unit in industrial warehouses, event sites, sports grounds, and commercial facilities. Constructed from fully galvanised steel, the unit is powder‑coated in a neutral Slate Grey (RAL 7035) that blends discreetly into warehouse, logistics, and outdoor environments while offering long‑term resistance to corrosion and weathering.

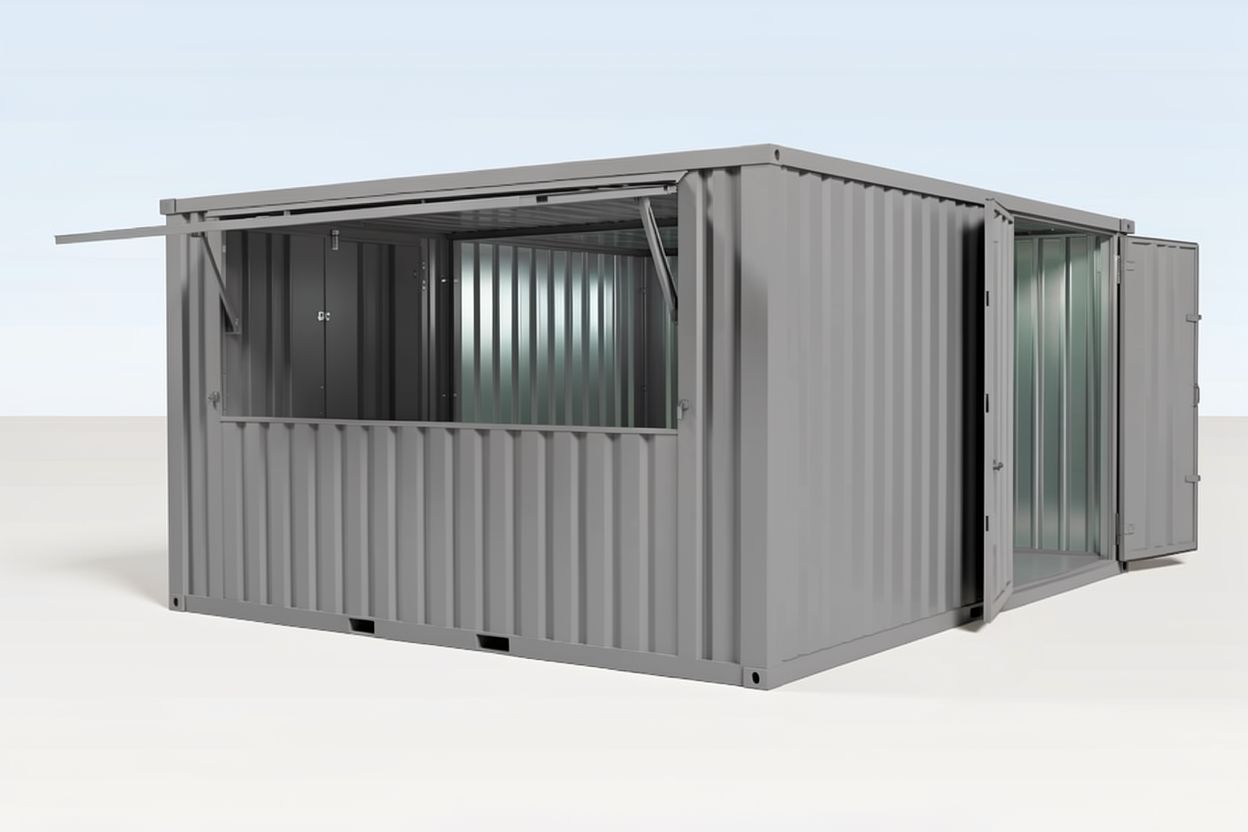

The kiosk features a top‑hinged side‑opening hatch on one of the 3 m sides, allowing for easy order‑taking, serving, or display without requiring customers or staff to walk around the unit. When purchased as a side‑linked store bundle, a second XL flat‑pack container connects laterally to the kiosk, creating extra secure storage space behind the counter while maintaining a compact footprint inside the warehouse or yard.

All components are designed as a flat‑pack system, enabling easy transport through narrow doorways, low‑level bridges, or crowded warehouse aisles; each panel, floor section, and roof element can be carried by hand and assembled on‑site without specialist lifting equipment. The interior offers usable floor space of around 2.1 m wide by 2.8 m deep, with an internal height of approximately 2.1 m, making it suitable for shelving, small equipment, and personnel movement.

The kiosk is ideal for industrial warehouses, logistics hubs, festivals, markets, and sports facilities, where quick deployment, durability, and easy relocation are critical. Optional accessories such as internal shelving, security upgrades, and lighting kits can be integrated to tailor the unit for specific operational needs, from parcel‑sorting booths to security checkpoints.

Key Specifications

• Model: 3m XL Flat Pack Kiosk & Side Linked Store (Grey, RAL 7035)

• External dimensions (kiosk):

  • Length: 2.95 m

  • Base width: 2.21 m

  • Roof width: 2.29 m

  • Height: 2.24 m

• External dimensions (side‑linked store bundle):

  • Total length: 2.95 m

  • Total base width: 4.42 m

  • Total roof width: 4.67 m

  • Height: 2.24 m

• Internal dimensions (kiosk):

  • Internal length: 2.79–2.80 m

  • Internal width: 2.13 m

  • Internal height: 2.10 m

• Doors:

  • Single large side‑opening hatch

  • Hatch width: 1.98 m

  • Hatch height: 1.03 m (top‑hinged)

• Construction: Fully galvanised steel body, powder‑coated in Slate Grey (RAL 7035) for corrosion resistance and long‑life durability.

• Floor: 15 mm OSB board, rated for up to 1,500 kg of evenly distributed load.

• Weight (flat‑packed): Approximately 460 kg total, with heaviest panel weighing about 122 kg.

• Assembly: Flat‑pack design; components can be moved by hand and assembled on‑site without cranes.

• Primary uses: Retail kiosks, information booths, ticketing counters, security huts, and ancillary storage in industrial and warehouse environments.
