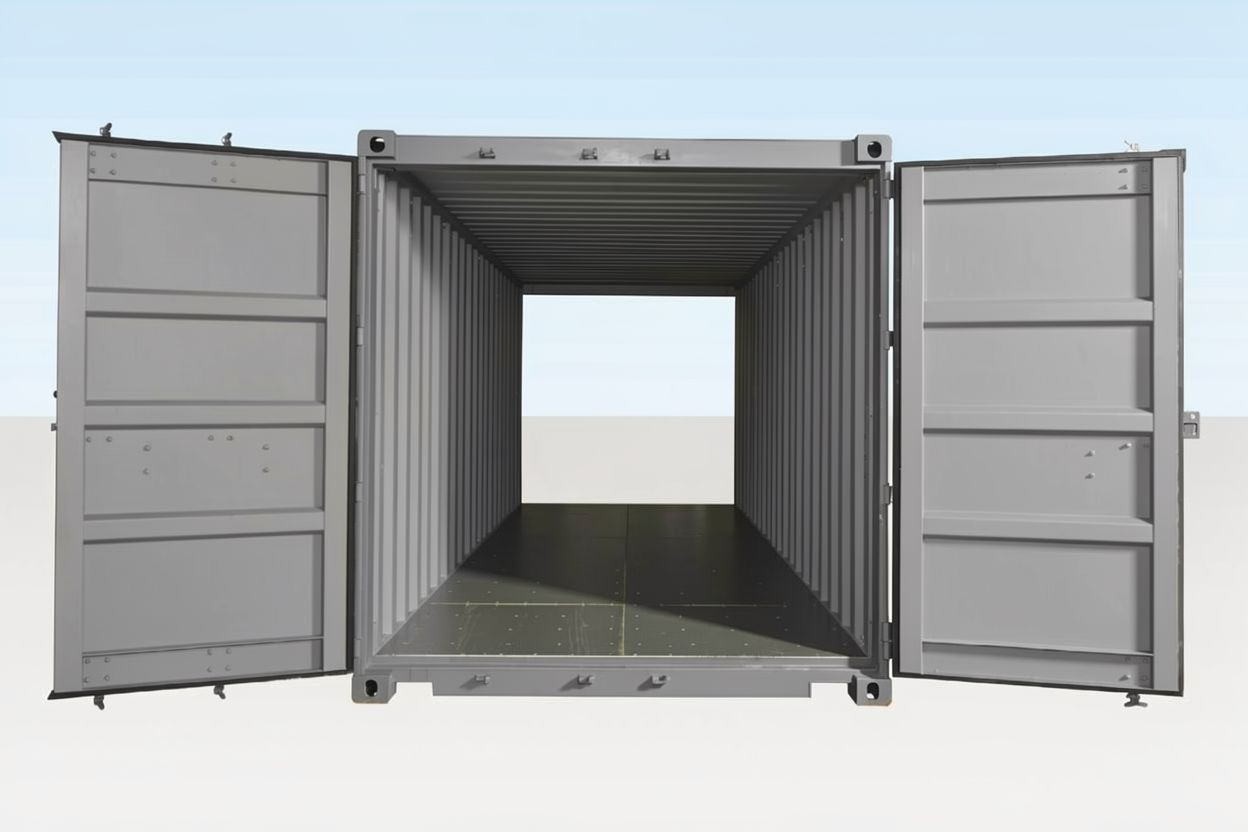

20ft tunnel container double end door ral 7035

20ft Tunnel Container Double End Door RAL 7035

$1,500.00

20ft x 8ft tunnel container with double‑end doors, one‑trip
condition, RAL 7035 light grey. Ideal for industrial storage, logistics
and self‑storage.

Category:

The 20ft x 8ft Tunnel Container (Double End Door) One Trip – RAL 7035 is a high‑quality, nearly new ISO shipping container designed for easy loading and unloading from both ends. Constructed from heavy‑duty Cor‑Ten steel with a RAL 7035 light grey finish, it offers a clean, modern look while providing excellent corrosion resistance and long‑term durability in industrial and outdoor environments.

This tunnel container features double‑width external doors at each end, each fitted with two locking bars and a factory‑installed lock box, enabling secure, unobstructed access for forklifts and manual handling teams. The interior includes a 28 mm marine plywood floor over steel cross members for robust load‑bearing performance, plus built‑in vents for airflow and temperature control.

Typical uses include industrial warehousing, palletized storage, self‑storage units (often split into two 10ft units), and logistics hubs where rapid throughput and easy access are critical.

Specifications (20ft x 8ft Tunnel Container – RAL 7035)

Attribute Value
External length 6.06 m (20 ft)
External width 2.44 m (8 ft)
External height (standard) 2.59 m (8 ft 6 in)
Internal length ≈5.84 m (19 ft 2 in)
Internal width 2.35 m (7 ft 9 in)
Internal height 2.39 m (7 ft 10 in)
Door opening width 2.34 m (7 ft 8 in)
Door opening height 2.28 m (7 ft 6 in)
Tare / weight (approx.) 2,340–2,450 kg
Floor type 28 mm marine plywood over steel cross members
Cubic capacity (int. volume) ≈1,158–1,172 cu ft (≈33 m³)
Max payload (typical) up to 28,000+ kg depending on CSC rating
Doors Exterior hinged double doors at both ends
Locking Two locking bars per door plus lockbox on each end
Forklift pockets 2 pockets per side for easy positioning
Vents 4 fixed vents for interior airflow
Construction Cor‑Ten weather‑resistant steel, ISO 668 / ISO 6346 compliant
Finish / color RAL 7035 light grey painted exterior
Condition One‑trip / nearly new, single shipping journey
